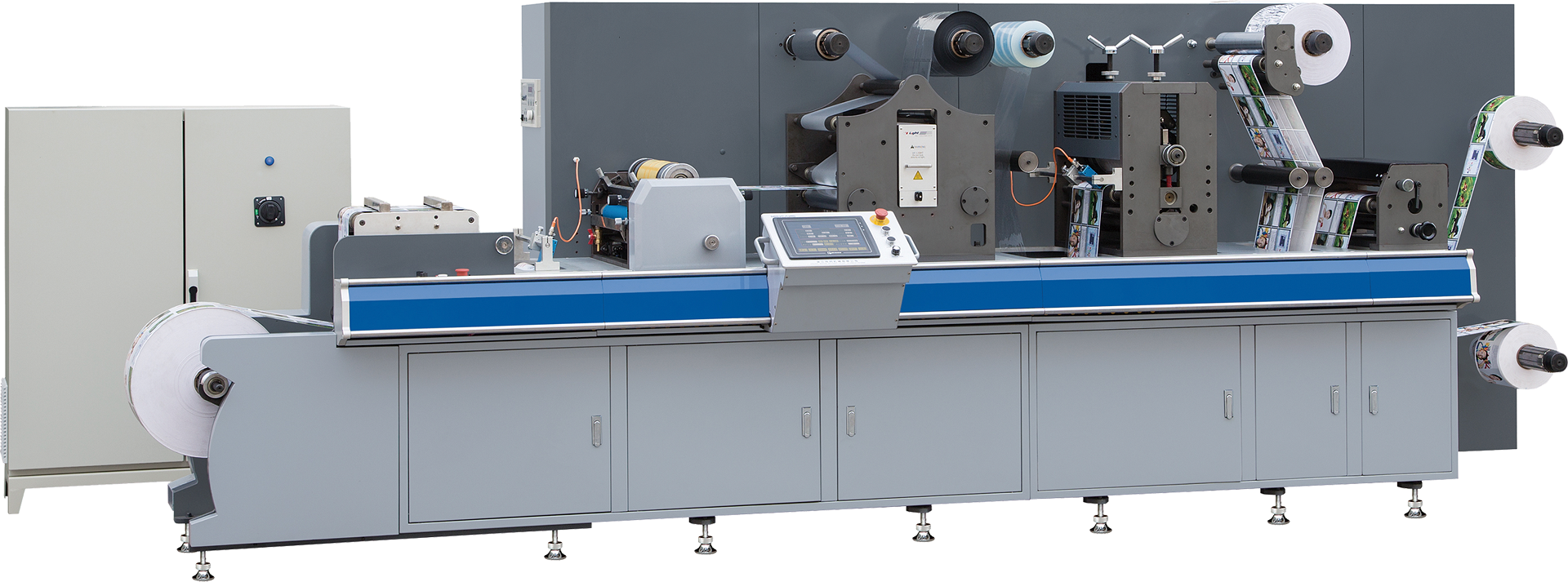

Weigang ZM-320 – Rotary/Semi-Rotary Label Die-Cutting Machine
Precision meets adaptability with the ZM-320, a cutting-edge label converting system designed for today’s fast-paced printing environments.
Key Features
- Dual-Mode Die-Cutting (Rotary/Semi-Rotary)
Patented register die-cutting technology allows seamless switching between full rotary and semi-rotary modes—perfect for any production scale. - Advanced Servo Control System
Features Germany’s Rexroth-Bosch servo motors and intelligent control throughout key units: unwinder, web-guider, lamination, die-cutter, slitter, and dual rewinder. - Inline Slitting & Magnetic Cylinder Efficiency
Equipped with inline slitter and a robust magnetic cylinder for flexible die changes. Adapts effortlessly to various label applications. - Consistent Tension Control in Semi-Rotary Mode
Innovative design ensures synchronized tension across all stations, eliminating material drift and improving die-cutting accuracy. - Performance & Profitability
Delivers high-speed output, exceptional precision, easy operation, and reduced waste. Ideal for both short and long-run jobs, making it a valuable asset for any label converter.
Main Technical Parameters
| Model | ZM-320 |
|---|---|
| Max. Die-Cutting Speed (Rotary) | 120m/min |
| Max. Die-Cutting Speed (Semi-Rotary) | 65m/min |
| Max. Die-Cutting Length (Rotary) | 190.5-539.75mm |
| Max. Die-Cutting Length (Semi-Rotary) | 100-350mm |
| Max. Die-Cutting Width | 300mm |
| Max. Web Width | 320mm |
| Max. Unwinder Dia. | 700mm |
| Max. Rewinder Dia. | 600mm |
| Max. Unwinder Dia. | 700mm |
| Die-Cutting Accuracy | ±0.1mm |
| Slitting Width | ≥20mm |
| Power Supply | 380V 3P |
| Weight | 2600KGS (One Die Cutting Unit+One Slitting Unit) |
| Dimensions(L×W×H) | 3220×1680×1660mm (One Die Cutting Unit+One Slitting Unit) |
